Wiggler Hilton

Ok i started and finished my little wiggler Hilton today took me about 30 min i did my best with the pictures and editing so that i can post up som easy instructions on how i did it

Total cost: $24.67

Materials:
3 rubber maid bins (size not important)
2 scrap 2x4's cut to fit box
1 1/2 PVC Hose Spiogt
2 Rubber O-rings
1 Spigot Collar


Tools:
Drill (mine is cordless)
3/8 drill bit
7/64 drill bit
1/2 hole saw


I started with the bottom box by drilling a 1/2" hole as close to the bottom as i could get

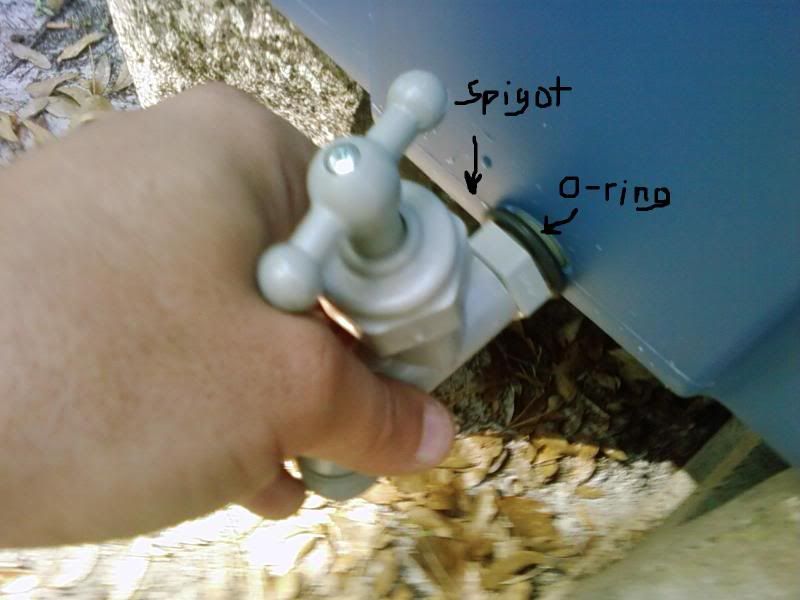

I then put 1 rubber o-ring onto the spigot and installed it in said hole

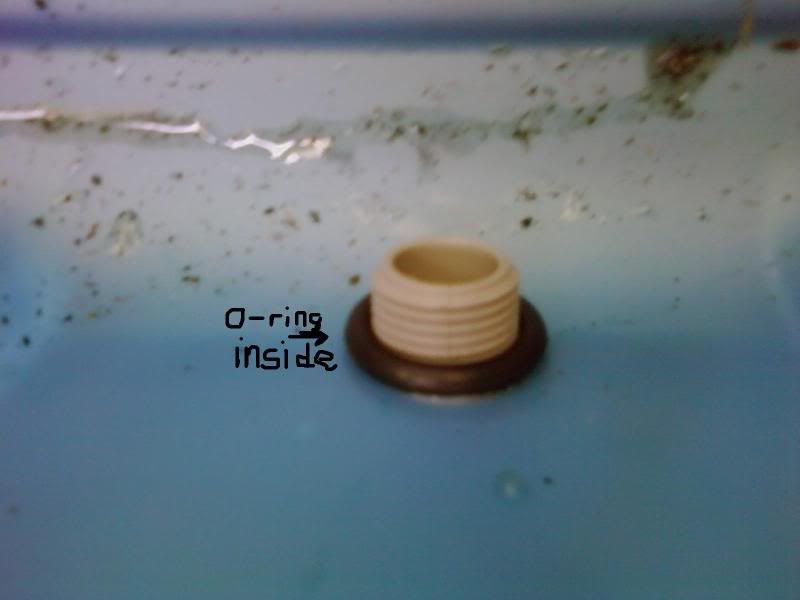

Placed another O-ring on the inside end of the spigot to dbl seal it for leaks

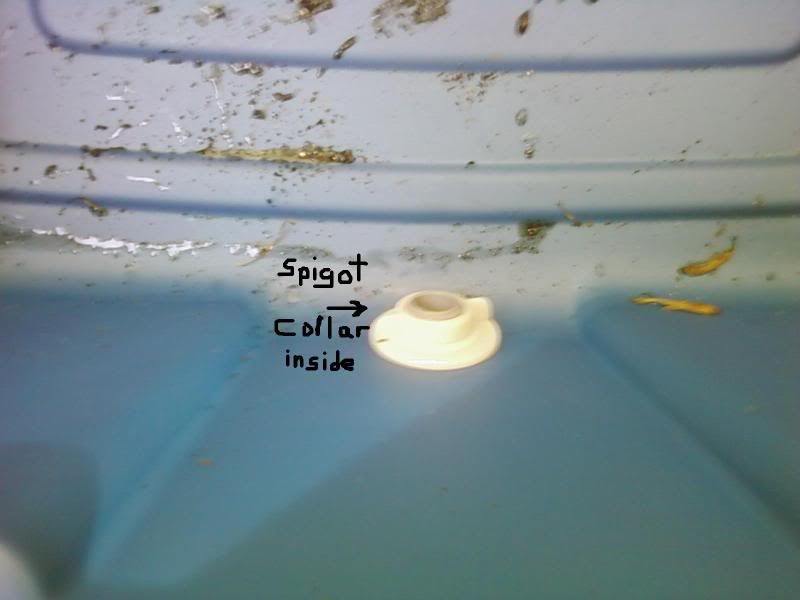

and locked it into place with the spigot collar

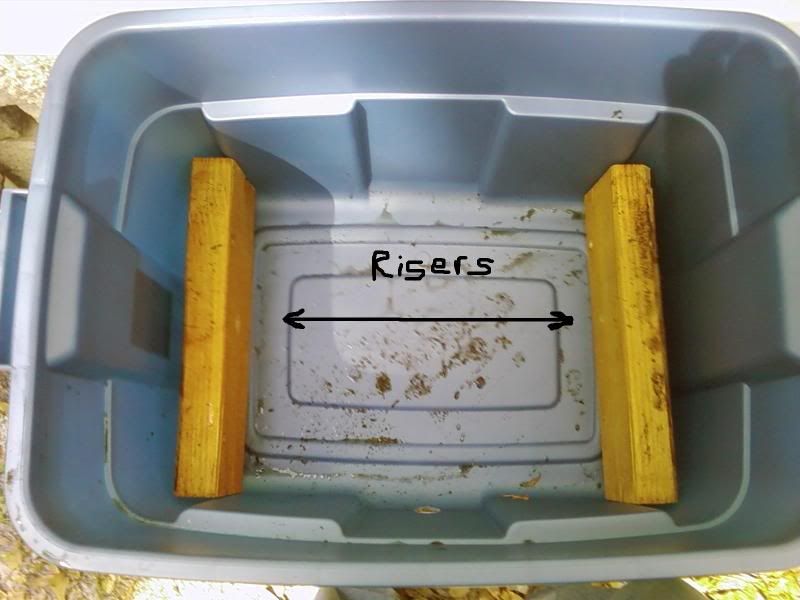

I next installed the scrap 2x4 risers to help elevate the 2nd tier from the bottom

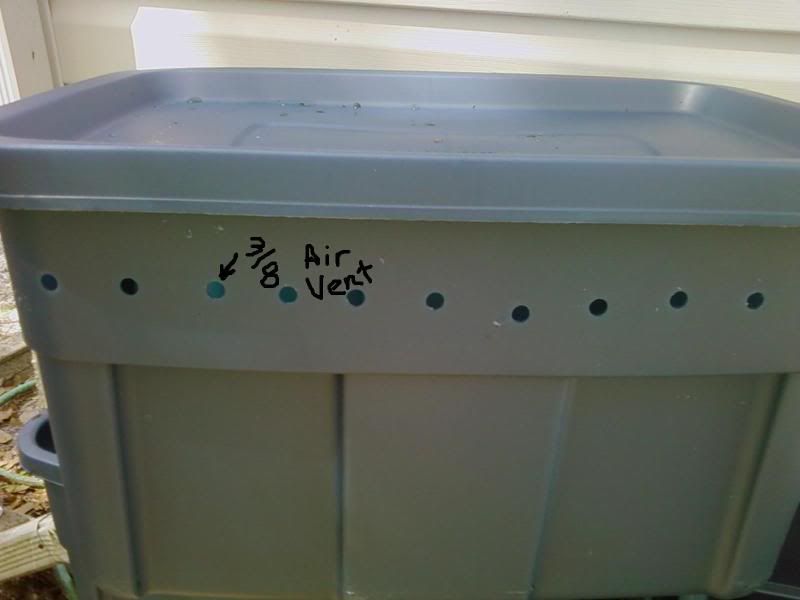

Then came the 2nd tier box i used a 3/8 drill bit to drill holes all the way around the up portion of the box to allow for good ventilation


Fliped the box over and used a 7/64 drill bit to drill drainage holes for the moisture to flow down into tier 1 for compost Tea i chose the 7/64 bit because its large enough to allow the water to drain but small enough to prevent the worms from commiting suicide

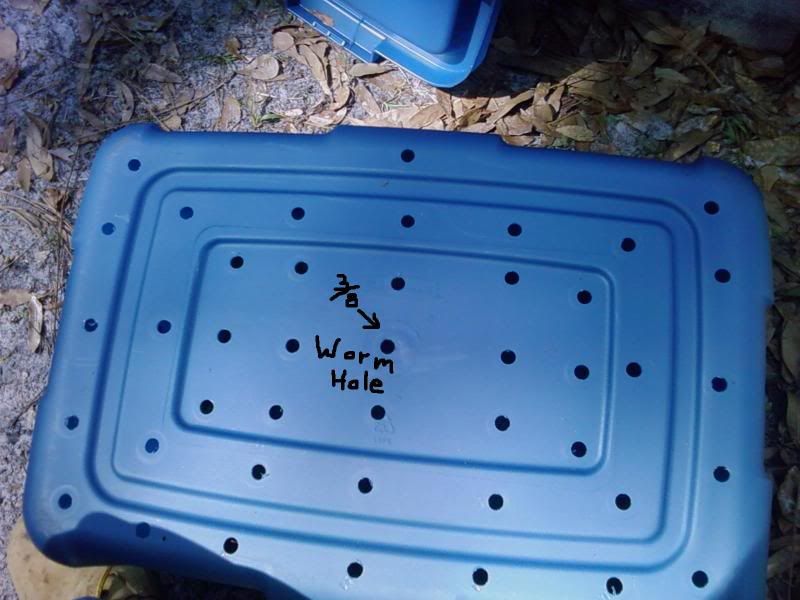

Now on to Tier 3 i used the 3/8 drill bit to again drill holes all the way around the upper portion of the box for good air flow i also used the same drill bit to drill holes all over the bottom of the box since it will be sitting on top of tier 2 and worms feed in an dupward motion i wanted to make sure that they had plenty of space to wiggle into tier 3

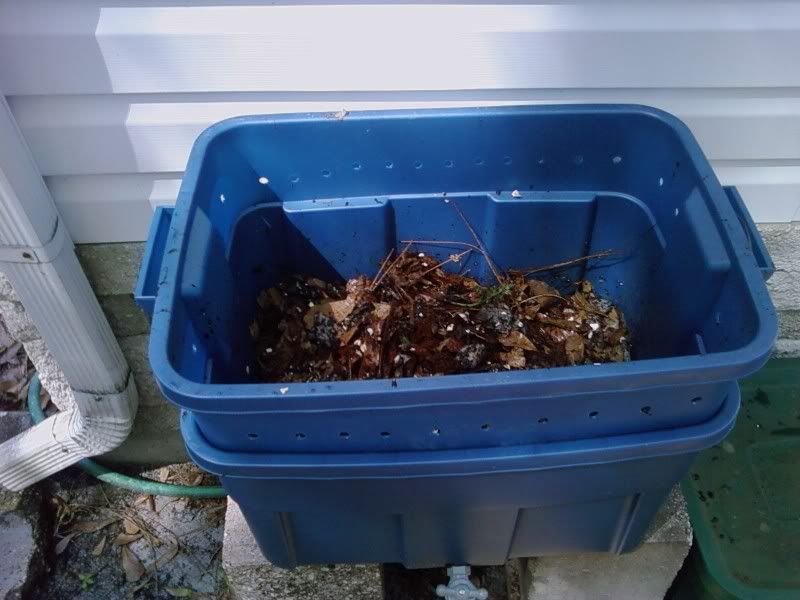

I installed tier 2 onto the risers inside of tier 1 and added some shredded paper leaves some semi composted material and compost (worms digestive system work useing whats called a gizzard which grinds stuff up so a little soil helps them alot)

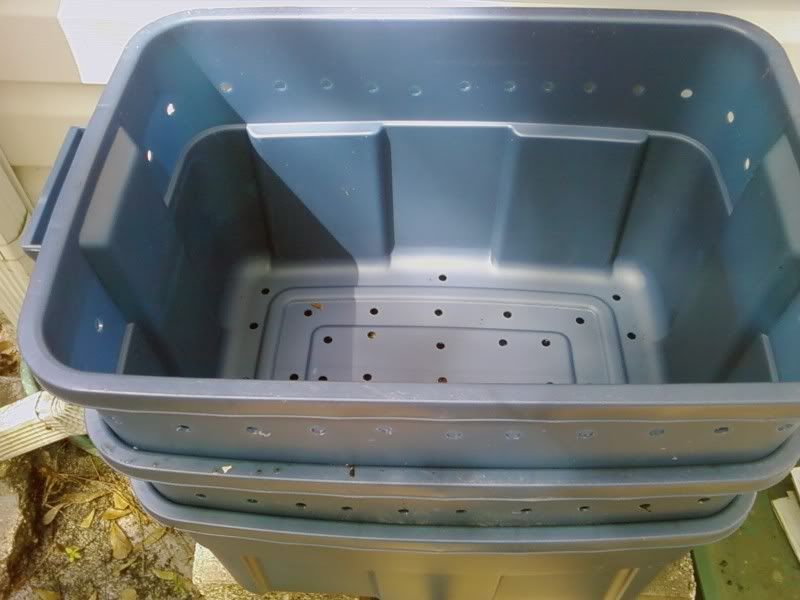

And last but not least i installed tier 3 on top of tier 2 since we are not concered about this tier being submerged in compost tea no risers are needed for this section

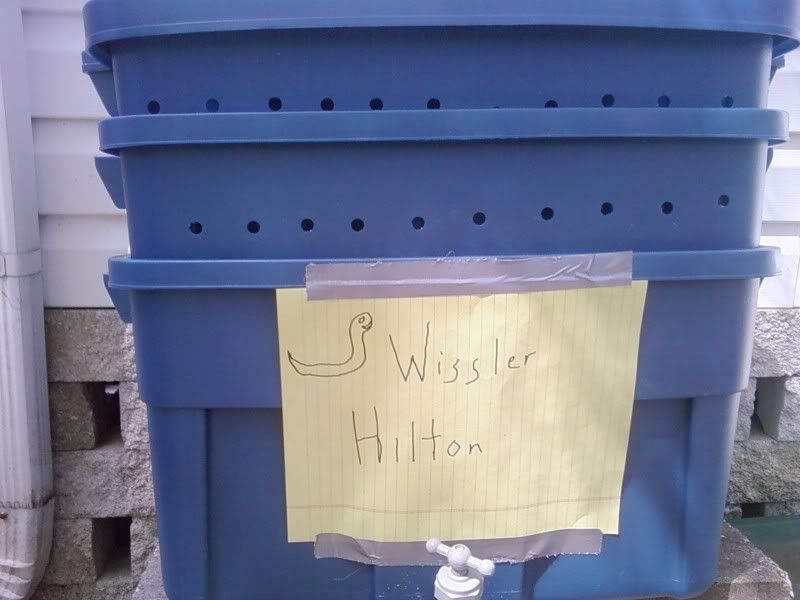

And you are done building your wiggler Hilton very simple very inexpensive method and this is your end results



Now when your worms arrive they are ready to go to work in thier new home.

I know this thread was a bit long winded but i wanted to try and give the best description and details about it as i could, and again my photo editing skills are not the greatest in the world so i did as best i could. If anyone has any questions please feel free to ask. I hope you enjoyed my little tutorial on how to build your own home made wiggler Hilton

Wow! it's a beautiful...hotel Nice pics and commentary as well!

Wow, this puts my old black plastic composter and utility sink to shame! Great job!

very much for the tutorial. I have been wondering about how to do this.

Just one question, Why the top (3rd) tier?

I understand the 1st tier for catching the tea, the second for the worms mixed into the compost but that third one just evades my understanding.

3rd tier is for more compost the set up can be expanded as many times as you want as long as the holes on the tier above the worms are large enough they will miggrate to the next lvl to feed work and play

That makes since. Learning new things every day. Got my lesson for the day so guess I can give the brain a break for now.

Thanks choksaw! I might try this if I can find a spot that won't cause the little guys to bake in the Texas sun.

Thanks. One question, wouldn't you still need risers between the 2nd and 3rd sections so the worms don't get squished? Or am I missed something here?

Oh, where did you get the spigot? I've never seen them at the stores, just mail order.

I love it! Very clear and concise instructions! A picture is worth a thousand words -- haven't I heard that somewhere?

Thanks for your great effort in posting.

no need for risers for the 3rd tier by the time if gets heavy enough to do anything the worms will have already migrated into the next box, not to mention worms are like cockroachs (bad analogy) they can flatten thier boddies and still wriggle freely

the spigot was found at lowes in the plumbing department originaly i had a brass one but could not find a collar or O-rings that would fit so i went back and looked at other options and saw the PVC 1 for half the cost and was able to find the collar and O-rings that would fit (thanx to Ray at my local lowes)

Ok, so exactly how does this work? You put new food scraps into the top box? Where does the compost "tea" come in? Do you add water to the boxes when you want "tea"? Or does the composting by the worms create enough moisture that it drips down and gathers in the bottom box? My Dad has a similar set up minus the spigot and he ocasionally (I'm not sure how often) takes the bottom box full of finished compost and dumps it into the gardens but I've never seen the "tea" set up you've documented.

The bottom section is to catch the liquid that naturally forms in the composting process. Otherwise the compost would get too soggy and the worms drown. Makes sense to be able to siphon it off for use in the garden.

exactly i could have done without the spigot but this being my first attempt at vermiculture i wasnt sure how heavy the compost bin would get or how heavy the tea bin would get so i tried to stay with the "KISS' system as much as i could. the only heavy lifting will be when i need to transfer the "garden gold" to another container for future use.

for those that dont know what the "KISS" system is KISS= Keep It Simple Stupid

Very Nice! The best instructions I've seen so far on the web. This might be just the push I need to go ahead and build one.

So, I set up my worms the other day and I have found maybe 4 or 5 all dried up on the floor next to the worm box. I opened it up and took and lot and there are lots of worms busy eating. Is this normal or did I miscalculate somewhere? It doesn't really bother me grossness-wise, but I don't want to let them hurt themselves...
